Holiday Maker Package: Level 3

All three levels of the holidaymaker packages use two solar controllers to allow roof and ground deploy solar charging at the same time, with National grid charging capability when available. Ground deploy charging supplements your off grid solar system battery energy to constantly power your fridge and lights and provide the ability to use a medium Wattage induction stove, hot plate, kettle or hair dryer etc. Level two and three has DC to DC alternator charging capabilities which can be upgraded for level 1

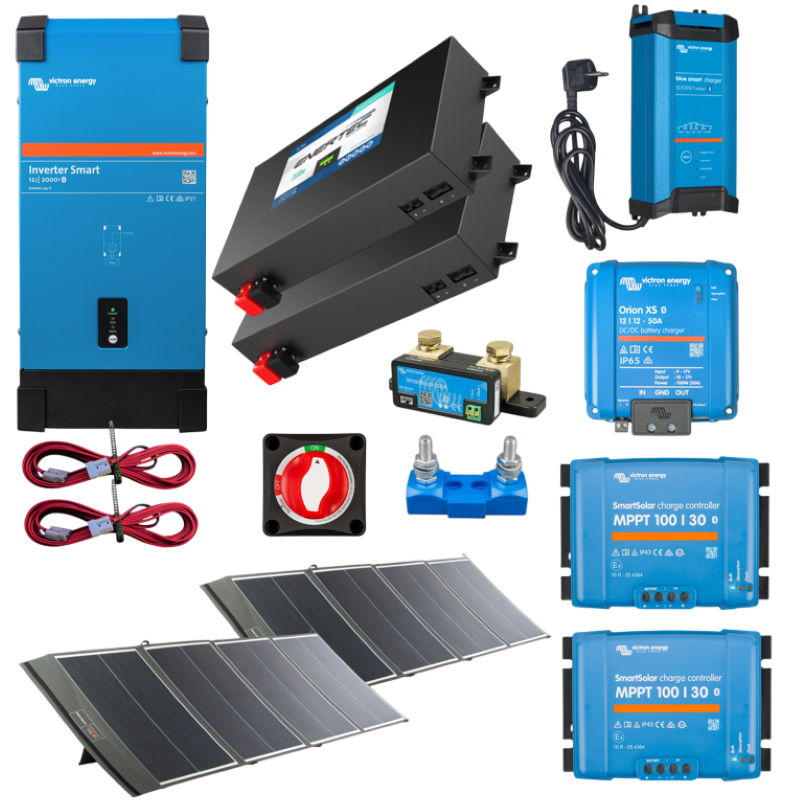

In this 3rd level of the holidaymaker package, you have a 2000VA smart inverter in an off grid solar system with 12V storage of 400 Ah LifePo4 Blade solar batteries and the existing 12V DC socket outlets are fed from this solar storage battery that is kept charged by a 30 A MPPT solar charger that is connected to installed solar panels on the roof and a 50 A DC-to-DC alternator charger while travelling.

The additional 30 A MPPT solar charger is capable of accepting two 240 W portable ground deployed solar panels when arriving at the planned destination and can provide 40% of the battery capacity with a day’s charging if parked in the shade and the roof solar charging is affected.

When connected to a National grid the 30 A wall charger is used to replenish the solar battery.

If you prefer a Full Service Installation Package, contact us for a quote.
